Laserworld ShowNET PRO Interface

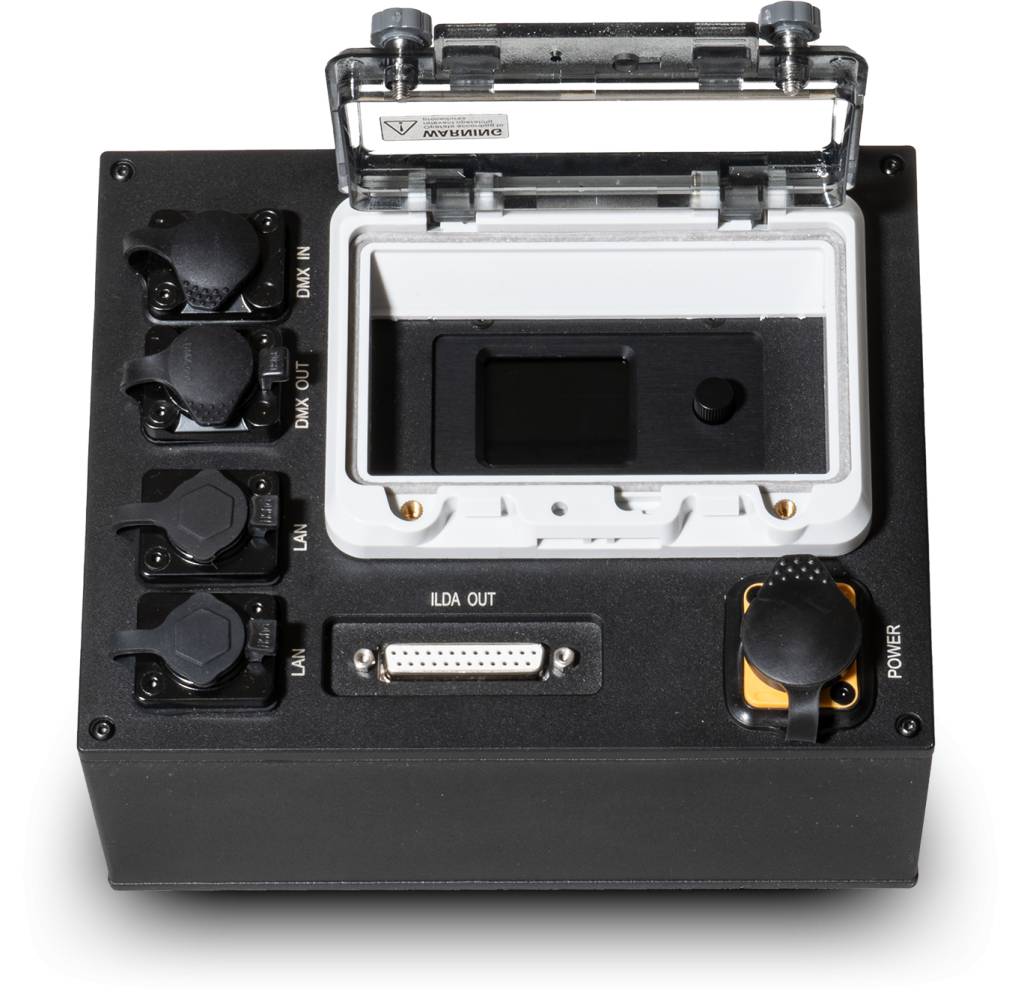

ShowNET PRO   Tilt Front S
The Laserworld ShowNET PRO Interface is a professional network interface for laser control. It comes in a rugged and rainproof aluminium housing and thus its suitable for indoor and outdoor use. The Laserworld ShowNET PRO Interface comes with an build in ShowNET DAC with display for easy control. It offers all the features of the regular ShowNET, the powerful laser control board with digital-analog-converter (DAC), DMX / ArtNET, stand-alone and ILDA Streaming feature!
  • Touring grade aluminium housing with M10 thread for mounting clamps fasteners etc.
  • IP64 rated housing
  • Internal switch
  • Safety eyelet
  • 5-Pin DMX in/out
  • ILDA out
  • Laser control board with DAC feature for digital-to-analog signal conversion (ILDA laser output)
  • DMX / ArtNET control
  • Stand-alone operation
  • ILDA streaming
  • Fully compatible to the professional Showcontroller laser software
  • Fully compatible to MadMapper/MadLaser as well as TouchDesigner and more

Carte mère ShowNET par défaut :
  • Diverses options de contrôle : ILDA, DMX professionnel (deux modes), Art-Net professionnel (deux modes), Fonctionnement autonome, Maître-Esclave, Récepteur de flux ILDA, LAN (contrôle par ordinateur, DAC intégré)
  • Créer du contenu personnalisé, le stocker à l'intérieur du laser et l'afficher dans différents modes
  • Logiciel de contrôle Show Laser gratuit inclus
ShowNET PRO   Tilt Front S
Stand-Alone modeMODE AUTONOME:
Le laser fonctionne de manière autonome et n'a pas besoin d'être contrôlé séparément. Il lit le contenu stocké sur la carte mère du laser.
DMX modeMODE DMX:
Le laser peut être contrôlé avec un contrôleur DMX standard ou un logiciel DMX.
ArtNET modeMode de contrôle ArtNET
Master-Slave modeMode maître-esclave:<
Un laser envoie des commandes de contrôle, l'autre laser les exécute. Fonctionne avec les modes autonome et musical.
LAN connectionMODE LAN:
Le laser peut être contrôlé via réseau / LAN - il peut s'agir soit d'un contrôle logiciel direct, soit d'ArtNET ou d'un système similaire (selon la carte mère)
ILDA connectionMODE ILDA:
Le laser peut être contrôlé par un signal ILDA standard (le signal de contrôle analogique pour le contrôle du laser). Des convertisseurs analogique-numérique externes (DAC) peuvent être utilisés.
ILDA StreamingStreaming ILDA
ShowNET insideSHOWNET INSIDE:<
Le laser est équipé de la carte mère laser avancée ShowNET qui apporte une multitude de fonctionnalités au laser et en fait un dispositif d'éclairage intelligent.
Free Showeditor laser software includedSHOWEDITOR INCLUS:<
La version complète du logiciel de contrôle laser Showeditor est incluse avec la carte mère ShowNET.

The Laserworld ShowNET PRO Interface can be used in different ways and combinations:

  • as automated playback system for laser shows
  • as DMX triggered playback system for laser shows
  • for ILDA Streaming: as ILDA IN - to - LAN - to - ILDA OUT adapter (ILDA range extender, ILDA over LAN, ILDA over Network)
  • as DMX IN - to - LAN - to DMX OUT adapter

As automated playback system for laser shows

Especially fixed laser show installations often require an automated playback system. In many cases there is no possibility to install a computer control system. The Laserworld ShowNET interfaces come standard with a microSD card and the interfaces can read standard ILDA files (*.ild) - which can be exported from Laserworld Showeditor or any other laser software that supports ILDA file export.
When having saved the desired files to the microSD card, a simple dip switch setting sets the interface to auto play mode - and automatically starts with playing back the show files saved on the microSD card. There are also many preset figures already saved to the internal memory of the ShowNET interface, so these can be used for auto play as well.



As  DMX triggered playback system for laser shows

As described above, the ShowNET can play back standard ILDA files from a microSD card. This playback feature does not only work in automatic mode, but also allows for individual DMX triggering of the very patterns. Further modifications to the figure, like e.g. intensity, base color, size, offset etc. can be controlled through standard DMX512 protocol, without having to save a specifically modified figure.
This DMX controlled laser playback system feature makes the ShowNET even suitable for larger scale live laser show productions, where the preset figures are often just triggered through a big, high professional lighting controller.



For ILDA Streaming: As ILDA IN - to - LAN - to - ILDA OUT adapter (ILDA range extender, ILDA over LAN, ILDA over Network) - two interfaces required per signal line

People that still use an older type USB DAC interface often face the problem of having to run long ILDA cables. However, the possible overall length of ILDA cables is limited due to the way the signal is transmitted. So some people use USB - to - LAN extenders to transmit the USB signal over longer distances. However, these solutions do not always work reliable - and especially if it comes to laser, it is important to not receive any irritating signals on the control line.
The Laserworld ShowNET interface is able to extend the ILDA signal from the ILDA output of any other ILDA outputting interface, e.g. a Pangolin Flashback 3 (FB3), over any distance, by transforming it to a digital TCP/IP network signal. That way it is possible to use standard network switches and standard CAT cables for signal distribution. Even fiber cable transmission is possbile.
It is possible to use up to 16 interfaces for inputting the ILDA signal to the network and up to 16 interfaces for outputting it again. Each input interface gets an individual address (can be set with dip switches) and the receiving interface is set to the corresponding receiver address (see manual for details). Then all input interfaces can be connected to a network switch, all ouptput interfaces are connected to another network switch and those two switches are connected by one (!) network cable only. Of course, if only one signal line shall be extended, there is no need for any switches -  a direct LAN cable is sufficient.



Hardware features of ShowNET:

X/Y scanner outputs with 12 bit resolution (4096 different positions on each axis)
Color outputs with 8 bit resolution (256 different intensity values per color channel): red, green, blue, intensity linked to green
DMX512 input and output (non-isolated)
100 Mbit Ethernet port
Flexible IP address setting: static address, DHCP or AutoIP
Internal MicroSD card for ILDA file playback (ILDA format code 4/5 RGB), can be accessed via LAN
standalone operation and DMX IN/OUT via DMX-Adapter
Maximum scan speed ~100.000 points per second
Up to 16 devices can be used in parallel for multiprojector laser shows
Built-in ArtNet-to-DMX converter





> Plus d'informations

> Plus d'informations

Motifs de base
over 120 (layers, tunnels, fences, waves, etc.)
Accessoires
microSD card, Power Cable, manual
Indice IP
64
Dimensions
200 x 115 x 160 (L x W x H)
Poids
2,04 kg
EAN / MPN
7640144999179
*En raison de différentes technologies avancées de correction d‘optiques utilisées dans nos systèmes, les puissances en sortie des modules peuvent légèrement différer des puissances annoncées pour le module correspondant. Divergence FWHM moyen selon le modèle.
